Gigabyte F2A85X-UP4 review

Good selection of ports and easy overclocking make this a great Trinity motherboard
Written By
Published on 31 December 2012

To help us provide you with free impartial advice, we may earn a commission if you buy through links on our site. Learn more

1 / 2
Gigabyte F2A85X-UP4
Gigabyte F2A85X-UP4 ports
Our rating
Reviewed price £90 inc VAT

The Gigabyte GA-F2A85X-UP4 supports AMD’s latest ‘Trinity’ chips, such as the Best Buy-winning A10-5800K. As its name implies, the GA-F2A85X-UP4 uses the A85X chipset, which means the old SATA2 connector, now replaced by seven SATA3 connectors. No more will you have to compromise or swap round SATA cables to get the best speed for whichever new device you want to use – you can just plug in your latest SSD and go. It also has a good complement of I/O ports on the top and back panels. You get four USB3 ports on the back panel and one USB3 header in addition to two USB2 ports on the back panel and three USB2 headers. It also has the obligatory Gigabit Ethernet port, 7.1 surround sound outputs, an optical S/PDIF output, an eSATA port and a single legacy PS/2 port. We welcome the four back-panel USB3 ports, but think Gigabyte could’ve thrown in a couple more USB3 headers and lost the eSATA port. Everyone wants USB3, but we don’t know anyone who needs eSATA. More pleasing is its complement of graphics outputs in the form of D-Sub, DVI-D, HDMI and DisplayPort connectors, providing an output for every occasion.

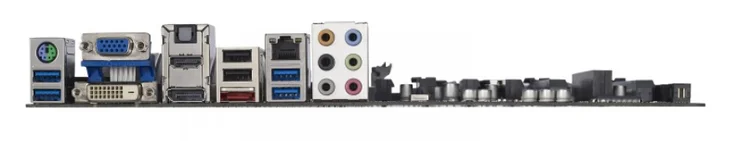

Gigabyte F2A85X-UP4 ports
There’s a great selection of portsPerhaps most important for gamers is the three PCI-E x16 slots. These can be configured to run in CrossFire mode, although the one slot runs at x8 and the other x4. The board also has three PCI-E x1 slots, but you’ll lose one if you install a graphics card in one of the first two PCI-E x16 slots. It also has a single legacy PCI slot, which is handy if you need to install a FireWire or USB expansion card. With an AMD A10-5800K and 4GB of 1600MHz DDR3, our benchmarks returned a score of 63 overall. This score is around what we expect from the A10-5800K. We overclocked our A10-5800K to 4.2GHz and ran the benchmarks again, getting a 10 per cent increase in performance that boosted the score to 69 overall. The GA-F2A85X-UP4’s UEFI BIOS is rather basic, but it provides all the settings you need and a good selection of overclocking settings. It lets you easily modify processor and memory clock speed and voltages.

Although we’d have liked more USB headers, the GA-F2A85X-UP4 does have a great selection of I/O, graphics ports and PCI Express ports. It’s also easy to overclock and has a comprehensive, if basic, UEFI BIOS. If you need a Trinity motherboard and want the A85X chipset, the Gigabyte GA-F2A85X-UP4 is a good choice.
